GYTA Fiber Optic Cable Optical Aluminum Tape 2 - 288 Core Strand G652d SM

  • 1
  • 2

Brand Name : TTIFIBER/OEM/ODM

Model Number : GYTA

Certification : ISO9001/CE/ROHS

Place of Origin : China

MOQ : 1000M

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100000 PCS/Month

Delivery Time : 5-17 Days

Packaging Details : Wood Drum

Product Name : Stranded Loose Tube Aluminum Tape Cable GYTA

Application : Outdoor communication use

Color : Black or OEM

Cable Diameter : 100M/OEM

Strength Member : OEM

Material : Top

Package : Standard

Way : Portable

Contact Now

Outdoor 2 4 6 8 12 24 32 48 72 96 144 288 Strand G652d Single Mode Duct Optical Aluminum Tape Gyta Fiber Optic Cable

Description:

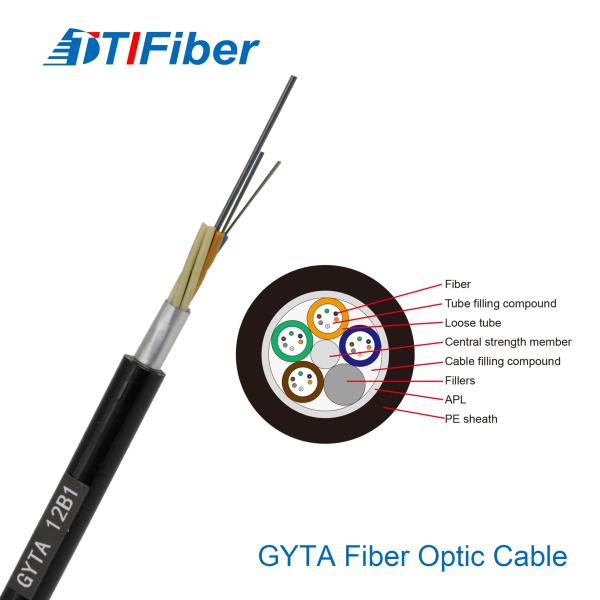

The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE)
for cable with high fiber count, locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound
to protect it from water ingress. Then, the cable is completed with a PE sheath.

Features:

♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.
♦ AL tape longitudinal cover cable core as moisture barrier.

Specification:
Cable Type Fiber Count Tubes Fillers Cable Diamete
rmm		 Cable Weight kg/km Tensile strength
Long/Short term
(N)		 Crush resistance
Long/Short term
(N/100mm)		 Bending radius
Static/Dynamic
(mm)
GYTA-2~6 2~6 1 4 9.0 80 600/1500 300/1000 10D/20D
GYTA-8~12 8~12 2 3 9.0 80 600/1500 300/1000 10D/20D
GYTA-14~18 14~18 3 2 9.0 80 600/1500 300/1000 10D/20D
GYTA-20~24 20~24 4 1 9.0 80 600/1500 300/1000 10D/20D
GYTA-26~30 26~30 5 0 9.0 80 600/1500 300/1000 10D/20D
GYTA-32~36 32~36 6 0 9.0 80 1000/3000 300/1000 10D/20D
GYTA-38~48 38~48 4 1 9.0 80 1000/3000 300/1000 10D/20D
GYTA-50~60 50~60 5 0 9.0 80 1000/3000 300/1000 10D/20D
GYTA-62~72 62~72 6 0 9.0 80 1000/3000 300/1000 10D/20D
GYTA-86~96 86~96 8 0 13.2 153 1000/3000 300/1000 10D/20D
GYTA-134~144 122~132 12 0 16.5 221 1000/3000 300/1000 10D/20D
GYTA-204~216 204~216 18 0 16.5 230 1000/3000 300/1000 10D/20D

Other hot selling fiber cables for choice:

GYTA Fiber Optic Cable Optical Aluminum Tape 2 - 288 Core Strand G652d SMGYTA Fiber Optic Cable Optical Aluminum Tape 2 - 288 Core Strand G652d SM


Product Feature:
1. Low insertion loss
2. Low back reflection loss
3. Custom defined specifications
4. Easy installation
5. Environmentally stable


Product Application:
1. Telecommunications
2. Local area network
3. Fiber to the home
4. Video transmission
5. Fiber optic sensing
6. Testing instruments
7. CATV
